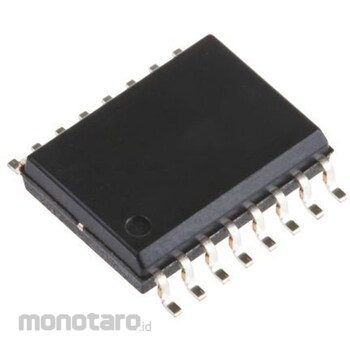

onsemi onsemi Latch, 16-Pin Decoder Surface Mount MC14536BDWG

Specification
*Latch Element: Decoder*Number of Bits: 4*Output Type: Pulse*Mounting Type: Surface Mount*Package Type: SOIC*Number of Pins: 16*Set/Reset: Yes*Dimensions: 10.45 x 7.6 x 2.4mm*Height: 2.4mm*Length: 10.45mm*Min. Operating Temperature: -55°C*The MC14536B programmable timer is a 24-stage binary ripple counter.*16 stages are selectable by binary code. It is available with an on-chip RC oscillator or external clock. It features an on-chip monostable circuit with built-in pulse-type output.*Various timings can be realized by selecting the appropriate counter stage in combination with the appropriate input clock frequency. 24 flip-flop stages - counting from 20 to 224 Latest 16 stages selectable with 4-bit selection code 8 bypass inputs allow bypassing of first 8 stages Set and reset inputs Clock inhibit and oscillator inhibit inputs Provisioned by on-chip RC oscillator On-chip monostable output provisioning Clock conditioning circuitry allows operation with very long rise and fall times Test Mode \81\5c Fast Test Sequence possible \94\5c Supply voltage range: 3.0 -> 18 V dc Capable of driving two low-power TTL loads or one low-power Schottky TTL load over the rated temperature range Lead-free packaging available
