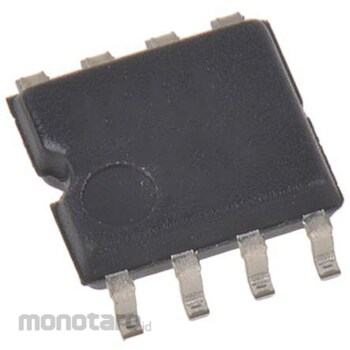

ROHM ROHM Op-amp, Surface Mount, 2 Circuits, Dual Power Supply, BA4560RF-E2

Specification
*Amplifier type: Low noise*Mounting type: Surface mount*Package type: SOP*Power supply type: Dual power supply*Number of circuits: 2*Number of pins: 8*Standard gain bandwidth product: 10MHz*Output type: Swing*Standard dual supply voltage: 3V*Standard slew rate: 4V/μs*Maximum operating frequency: 10kHz*Operating temperature Min: -40°C*Standard voltage gain: 100dBmV*Height: 1.39mm*The general-purpose BA4558 / BA4560 / BA15218 / BA14741 / BA15532 / BA4510 family and the high-reliability BA4558R / BA4560R / BA4564R / BA4580R / BA4584 / BA4584R / BA8522R / BA2115 family contain two or four independent operational amplifiers on a single chip. The low noise and low distortion characteristics make these amplifiers suitable for various audio applications, and their wide operating voltage range also allows them to be used for a variety of other applications. The BA4558R / BA4560R / BA4564R / BA4580R / BA4584R / BA8522R / BA2115 are highly reliable products with a wide operating temperature range and enhanced ESD resistance. High voltage gain, low noise, low distortion Wide operating supply voltage Built-in phase compensation capacitor No latch-up Built-in ESD protection Human body model (HBM) ±5000 V (typ.) Wide temperature range
