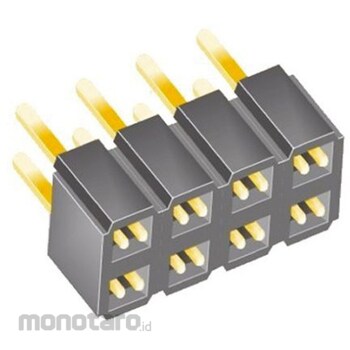

SAMTEC Samtec PCB Socket, 8-way, 2.54mm, 2-row, Through-hole Mount

Specification
*Number of poles: 8*Number of rows: 2*Pitch: 2.54mm*Type: Board-to-Board*Mounting type: Through-hole mounting*Connection direction: Straight*Termination method: Through-hole*Rated current: 12A*Rated voltage: 333V*Series: CES*Contact material: Bronze*This CES series low-profile board-to-board socket strip mates with: TLW series low-profile square post headers: See typical part number 765-6168 765-6168; TSM series low-profile square post headers: See typical part number 765-6613 765-6613; TSW series low-profile square post headers: See typical part number 767-1044 767-1044 . 2.54 mm Low-Profile Close Entry Socket Strip - CES Series. The CES series board-to-board through-hole close-entry socket strips have a pitch spacing of 2.54 mm. This board-to-board socket strip has a low profile design and 3.25 mm solder tails. The body of this CES series board-to-board close entry socket strip is made from black glass-filled polyester. The contacts are made from matte tin-plated phosphor bronze. This board-to-board socket strip has a temperature range of -55 to +105°C. Part number CES-1XX-01-XS: Single row socket strip Part number CES-1XX-01-XD: Double row socket strip
