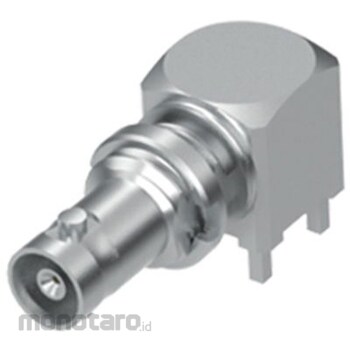

SAMTEC Samtec Coaxial Connector Jack PCB Mount BNC Connector, HDBNC-JP-gN-RA-BH1

Specification
* Coaxial Connector Type: BNC Connector * Mounting Type: PCB Mount * Impedance: 75Ω * Termination Method: Through Hole * Connection Orientation: Right Angle * Compatible Cable: Microwave * Size: Standard * Bulkhead: Yes * Operating Frequency: 0 to 6GHz * Surface Finish: Body: Gold * Series: HD-BNC * Contact Material: Copper Alloy * Surface Finish: Contact: Gold * Samtec 75 BNC PCB Mount Jack. This is the HD (High Density) 75 BNC jack series from Samtec. This BNC jack features the traditional 1/4-turn bayonet coupling mechanism of a standard BNC, but in a reduced size. It increases the available board space for components by up to four times. Part numbers with EM and TH suffixes offer extended performance up to 12 GHz, while the RA type offers extended performance up to 6 GHz. BNC connectors are available in straight and right-angle types. Features and Benefits: EM and TH types offer extended performance. 20% reduction in mass over traditional BNCs. Compact size increases available board space. Applications: Instrumentation, Broadcasting, Security, Communications
