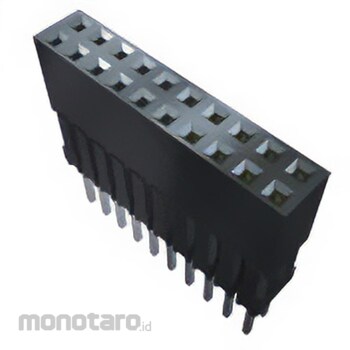

SAMTEC Samtec PCB Socket, 10-way, 2.54mm, 2-row, Through-hole Mount

Specification
*Number of poles: 10*Number of rows: 2*Pitch: 2.54mm*Type: Board-to-board*Mounting type: Through-hole mounting*Connection direction: Straight*Termination method: Through-hole*Rated current: 12A*Rated voltage: 500V, 777V*Series: IPS1*Contact material: Bronze*This board-to-board isolated power socket mates with the IPT1 series shrouded PCB power terminals - see representative part number: 767-6862. 2.54mm Shrouded PCB Isolated Power Socket Strip - IPS1 Series. The IPS1 series Mini MateR board-to-board shrouded through-hole PCB isolated power socket strip has a pitch spacing of 2.54mm and a mated height of 11.05mm. This IPS1 series board-to-board isolated power socket strip uses RuggedTM technology, with two rows of shrouded, 0.25μm gold-plated Tiger BuyTM tuning fork-type phosphor bronze contact sets arranged within a black glass LCP insulator. This IPS1 series shrouded board-to-board power socket has a temperature range of -55 to +125°C at an ambient temperature of 20°C and a maximum power rating of 9A. Part number IPS1-1XX-01-LD: Straight through-hole mounting Part number IPS1-1XX-01-LD-RA: Right-angle through-hole mounting
