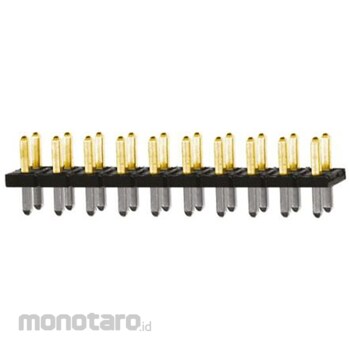

SAMTEC Samtec Pin Header 40 Way 1.27mm 2 Row FTS-120-01-LD

Specification
*Series: FTS*Pitch: 1.27mm*Number of Positions: 40*Number of Rows: 2*Connection Direction: Straight*Shrouded/Unshrouded: Unshrouded*Mounting Type: Surface Mount*Termination Method: Solder*Surface Finish: Gold Contacts*Current Rating: 1.75A*Compatible Pin Length: 3.05mm*Through-Hole Mount Micro Low-Profile Terminal Strip - FTS Series. Samtec's FTS series headers are 1.27mm pitch through-hole micro low-profile terminal strips with an overall body height of 1.27mm. These FTS series micro low-profile terminal strips can be mated with the appropriate socket strip or IDC cable assembly. 0.25 μm gold-plated contacts, tin-plated tails. Current rating: 1.75 A @ 80°C. Operating temperature: -55 to 125°C. FTS-xxx- 01 -x-xx has a 3.05 mm post length and mates with the FFSD series IDC cable assemblies. See typical part numbers 159-880 and 159-880. FTS-xxx- 03 -x-xx has a 1.65 mm post length and mates with the CLP series IDC cable assemblies. See typical part numbers 481-4695.
