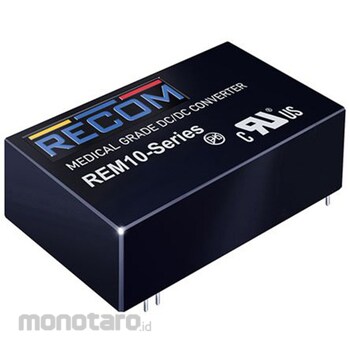

RECOM Recom DC-DC Converter Vout: ±15V dc 5.5 → 9 V dc, 10W, REM10-0515D/A

Specification
*UL-60950-1, EN-55011, EN-55022, IEC/EN-60950-1, IEC/EN-60601-1. CB, IEC/EN, ANSI/AAMI, CE, and UL. Recom 10W DIP Single/Dual Output Isolated Regulated Medical DC-DC Converter - REM10 Series. The Recom REM10 is a series of medical-grade rectified DC-DC converters with reinforced isolation at 5 kV AC/1 minute and low leakage of 2 μA. It complies with 60601-1 3rd Ed. for continuous operation at 250 V AC. This 10W DC-DC converter in a compact DIP24 package provides tightly regulated single and dual outputs, even under no-load conditions. The outputs of the REM10 series converters are protected against short circuits and overloads. The DC-DC converters are fully compliant with CB, IEC/EN, and ANSI/AAMI standards and are CE and UL marked. Reinforced isolation for 250 V AC operating voltage. Clearance and creepage distance: 8 mm. 5 kV AC I/P -> O/P 2MOPP isolation. 2 μA patient leakage current. Industry standard pinout. 2:1 / 4:1 wide input range. Output voltage adjustment range: ±13.5 V dc, ±16.5 Vdc. Isolation: Yes.
