RECOM Recom DC-DC Converter Vout: ±12V dc 18 → 36 V dc, 3W, REM3-2412D/A

Specification

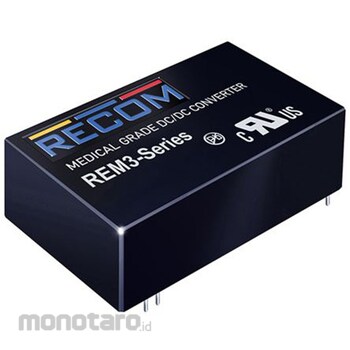

*UL-60950-1, EN-55011, EN-55022, IEC/EN-60950-1, IEC/EN-60601-1. CB, IEC/EN, ANSI/AAMI, CE, and UL. Recom 3W DIP Single/Dual Output Isolated Regulated Medical DC-DC Converter - REM3 Series. The Recom REM3 is a series of medical-grade rectified DC-DC converters with reinforced isolation of 5 kV AC/1 min and low leakage of 2 μA. It complies with 60601-1 3rd Ed. for continuous operation at 250 V AC. This compact DIP24 package DC-DC converter provides tightly regulated single and dual outputs, even under no-load conditions. The outputs of the REM3 series converters are protected against short circuits and overloads. The DC-DC converters are fully compliant with CB, IEC/EN, and ANSI/AAMI standards and are CE and UL marked. Reinforced isolation for 250 V AC operating voltage. Clearance and creepage distance: 8 mm. 5 kV AC I/P -> O/P 2MOPP isolation. 2 μA patient leakage current. Industry standard pinout. 2:1 / 4:1 wide input range. Output voltage adjustment range: ±10.8 V dc, ±13.2 Vdc. Isolation: Yes.
