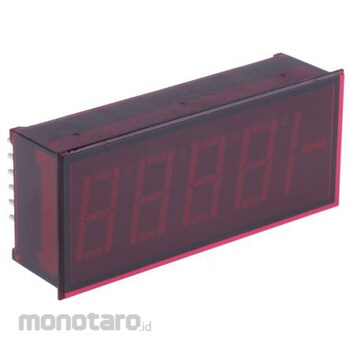

Murata Power Solutions Murata Power Solutions Voltage Measurement Digital Panel Meter DC LED DMS-40PC-1-RL-C

Specification
*Current Type: DC*Number of Display Digits: 4.5*Display Type: LED*Height: 22.3mm*Width: 53.8mm*Depth: 20.62mm*Analog Effects: Numeric Only*Operating Temperature Min: 0°C*Operating Principle: Voltmeter*Operating Temperature Max: +50°C*DMS-40PC - Digital Panel Voltmeter. The DMS-40PC digital voltmeter features an integrated bezel and color filters. Housed in a miniature, epoxy-sealed package, each meter features a precision reference circuit, a high-resolution, factory-calibrated A/D converter with auto-zero, and a large, easy-to-read 13.2mm LED display. The moisture-proof and vibration-resistant packaging makes it extremely rugged, suitable for harsh environments and a wide temperature range. Digital voltmeter with 4.5-digit display Large 13.2 mm red LED display Scientific-grade accuracy, ±2 counts Single +5 V power supply (175 mW) High-precision, auto-zero, factory-calibrated A/D converter Display hold and test functions Epoxy-encapsulated in a 12-pin DIP package Miniature size: 55 x 23 x 14 mm
