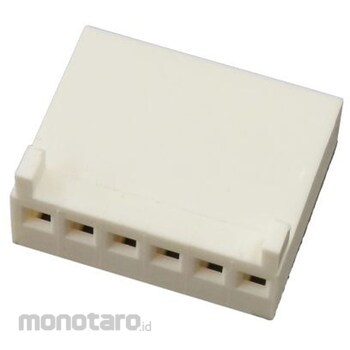

Murata Power Solutions Murata Power Solutions Connector Housing 6 Way 1 Row 4320-01069-0

Specification
*Number of Poles: 6*Number of Rows: 1*Gender: Female*Mounting Type: Panel Mount*Series: DMS*Compatible with: 12-Pin DMS Series*Connection Orientation: Straight*Length: 15.7mm*Width: 12.7mm*Housing Material: Nylon*Accessories for 12-Pin DMS Series Panel Meters. 6-Position Connector Housing and Crimp Terminals. 4320-01069-0 (; 903-3567 903-3567) 6-position connector housing and 4400-01032-0 (; 903-3545 903-3545) crimp terminals provide secure input/output connections for all panel-mount 12-pin DMS Series meters. These connectors are ideal for small-scale prototyping applications. Each meter requires two connector housings and 12 terminals. . 6-Position SIP Socket 4320-01074-0 ( ; 903-3554 903-3554 ) 6-position SIP sockets provide a simple, low-cost, low-profile solution for mounting 12-pin DMS series panel meters to PCBs. These sockets offer excellent mechanical retention and are capable of supplying all the mechanical force necessary to hold the meter in place.
