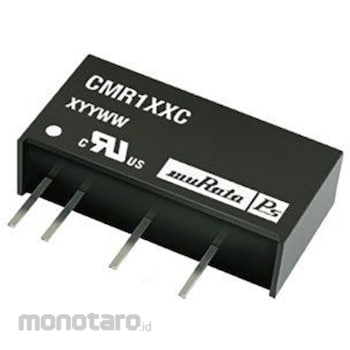

Murata Power Solutions Murata Power Solutions DC-DC Converter Vout: 5V dc 4.5 → 5.5 V dc, 0.75W, CMR100C

Specification
*Output Voltage: 5V dc *Input Voltage Range: 4.5-5.5 dc *Rated Power: 0.75W *Nominal Input Voltage: V dc *Output Current: 150mA *Mounting Type: Through-Hole *Isolation: Yes *Number of Outputs: 1 *Package: C *Isolation Voltage: 1kV dc *Depth: 10mm *Series: CMR *Load Regulation: 0.11 *Minimum Temperature: -40°C *Murata 0.75 W Single/Dual Output Isolated DC-DC Converter CMR Series. Murata CMR series DC/DC converters offer single or dual isolated outputs. CMR isolated DC-DC converters are cost-effective and housed in industry-standard packages with industry-standard pinouts. The galvanic isolation of this DC-DC converter allows the device to be configured to provide an isolated negative voltage rail in systems where only a positive voltage rail is present. The wide operating temperature range CMR series isolated DC-DC converters guarantee start-up from -40°C and full 0.75 W output at 85°C. Single or dual isolated outputs kV dc or 3 kV dc options Wide temperature performance from -40 to 85 (at 1 W full load) Industry standard pinout V, 12 V, 24 V inputs V, 12 V, 15 V outputs
