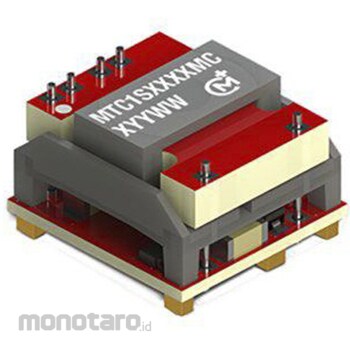

Murata Power Solutions Murata Power Solutions DC-DC Converter Vout: 5V dc 9 → 18 V dc, 1W, MTC1S1205MC-R7

Specification
*Output voltage: 5V dc*Input voltage range: 9 -> 18 V dc*Rated power: 1W*Nominal input voltage: 12 V dc*Output current: 200 mA*Mounting type: Surface mount*Isolation type: Yes*Number of outputs: 1*Islation voltage: 3 kV ac*Width: 14.22 mm*Series: MTC1*Load regulation: ±0.5%*Minimum temperature: -40°C*UL60950 and ANSI/AAMI ES60601-1 certification pending (2 MOOPs). Murata 1 W Single Output Isolated DC-DC Converter - MTC1 Series. The Murata MTC1 series is a 1 W, rectified, single-output DC/DC converter with a nominal input voltage of 12 or 24 V dc and a 2:1 input range around the selected nominal voltage. These surface-mount DC-DC converters feature six single outputs, delivering 3.3512 V DC from both 12 and 24 V DC nominal inputs. The MTC1's outputs are fully regulated within +/- 0.5% of the stated output, eliminating the need for additional rectification components. This series of isolated DC-DC converters features a voltage trim pin, allowing the output voltage to be adjusted by +/- 10% to meet special voltage requirements. A remote on/off pin allows the output to be disabled to reduce power consumption in the application. The MTC1 isolated DC-DC converter is suitable for a wide range of medical and healthcare applications, as well as industrial, communications, battery-powered systems, and process automation. Features include: 3 kV AC isolation test voltage, output voltage trim, remote on/off pin, no electrolytic capacitors, operating temperature range: -40°C to 105°C, and a 2:1 input range.
