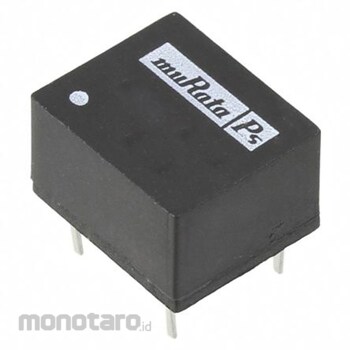

Murata Power Solutions Murata Power Solutions DC-DC Converter Vout: 5V dc 4.5 → 5.5 V dc, 0.75W, CME0505DC

Specification
* Output Voltage: 5V dc * Input Voltage Range: 4.5-5.5 dc * Rated Power: 0.75W * Nominal Input Voltage: V dc * Output Current: 150mA * Mounting Type: Through-Hole * Isolated: Yes * Number of Outputs: 1 * Package: DC * Isolation Voltage: 3kV dc * Depth: 6.8mm * Series: CME * Load Regulation: 0.12 * Minimum Temperature: -40°C * Murata 0.75W Single-Output Isolated DC-DC Converter CME Series. Murata CME series DC-DC converters are cost-effective and housed in industry-standard packages with industry-standard pinouts. The galvanic isolation of this DC-DC converter allows the device to be configured to provide an isolated negative voltage rail in systems that only have a positive voltage rail. Offering a wide operating temperature range, the CME series isolated DC-DC converter guarantees full 0.75W output power at temperatures from -40°C and 85°C. Single isolated output 200kV dc or 3 kV dc options Wide temperature range -40 to 85°C (at 1 W full load) Industry standard pinout 3.3 V, 5 V input 3.3 V, 5 V, 12 V output
