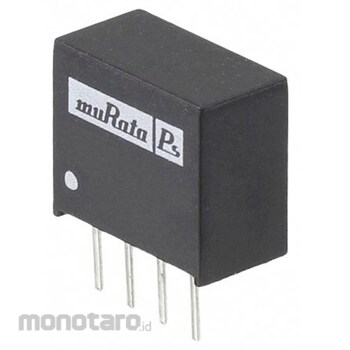

Murata Power Solutions Murata Power Solutions DC-DC Converter Vout: 3.3V dc 2.97 → 3.63 V dc, 0.75W, CME0303S3C

Specification
*Output Voltage: 3.3V dc*Input Voltage Range: 2.97-3.63 dc*Rated Power: 0.75W*Nominal Input Voltage: 3.3 dc*Output Current: 227mA*Mounting Type: Through-Hole*Isolation: Yes*Number of Outputs: 1*Package: 3C*Isolation Voltage: 3kV dc*Depth: 7.46mm*Series: CME*Load Regulation: 0.12*Minimum Temperature: -40°C*Murata 0.75 W Single-Output Isolated DC-DC Converter CME Series. Murata CME series DC-DC converters are cost-effective and housed in industry-standard packages with industry-standard pinouts. The galvanic isolation of this DC-DC converter allows the device to be configured to provide an isolated negative voltage rail in systems where only a positive voltage rail is present. The wide operating temperature range CME Series isolated DC-DC converters guarantee start-up from -40°C and full 0.75 W output power at 85°C. Single isolated output kV dc or 3 kV dc options Wide temperature performance from -40 to 85 (at 1 W full load) Industry standard pinout 3.3 V, 5 V input 3.3 V, 5 V, 12 V output
