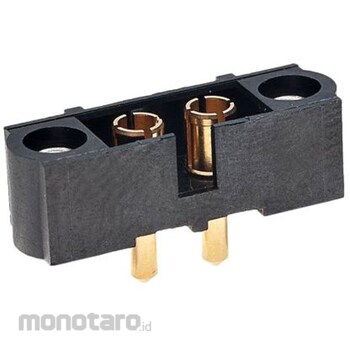

HARWIN HARWIN PCB Connection Pin Header 2-Pole 4.0mm 1-Row M80-5000000M1-02-331-00-000

Specification
*Series: Datamate Mix-Tek*Pitch: 4.0mm*Number of Poles: 2*Number of Rows: 1*Connection Direction: Straight*Shrouded/Unshrouded: Shrouded*Connector System: Board-to-Board, Wire-to-Board*Termination Method: Solder*Surface Finish: Contacts: Gold*Rated Current: 20.0A*Rated Voltage: 800 -> 0V*Certified to BS9525-F0033 and CECC-75101-008. Harwin Datamate Mix-Tek 2 mm Cable Plug Connectors. Datamate Mix-Tek Male Off The Shelf (OTS) cable plug connectors feature a compact 2 mm pitch design that provides industry standard high reliability. This Datamate Mix-Tek OTS cable plug is designed for military, aerospace and high-end applications and is utilized internationally in COTS programs. The Datamate Mix-Tek OTS cable plug housings are fully shrouded for contact protection, have built-in polarization features to prevent mis-mating, and feature a mounting flange with jackscrew. These Datamate Mix-Tek cable connectors feature beryllium copper 20A standard power contacts with a four-finger design, making them vibration and shock resistant and capable of operating over a very wide temperature range. Typical applications for these Datamate Mix-Tek cable plugs include aerospace, military, data/communications, medical, handheld/industrial equipment, robotics, and oil/gas.
