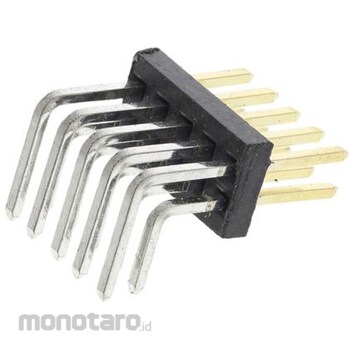

HARWIN HARWIN Pin Header 10-way 1.27mm 2-row M50-3900542

Specification
*Series: Archer M50*Pitch: 1.27mm*Number of poles: 10*Number of rows: 2*Connection direction: Right angle*Shrouded/Unshrouded: Unshrouded*Mounting type: Through hole mounting*Termination method: Solder*Contact material: Phosphor bronze*Rated current: 1.0A*Tail pin length: 2.0mm*Compatible pin length: 3.8mm*Harwin Archer M50 Series 1.27mm PCB Header Connectors. The Archer M50 series is an industry standard 1.27mm wire-to-board header connector for use with cable sockets and jumper sockets. The Archer M50 offers great design flexibility. It can be cut to size and is available in a variety of configurations including portrait, landscape, PCB through hole and SMT mounting. The Archer series IDC ribbon cable connectors' compact design allows them to be used in a variety of electronics applications while saving space on the PCB. Typical applications for this Archer IDC cable socket include navigation systems, sonar displays, industrial and automotive controls and test equipment, communications equipment such as datacom and telecommunications, medical diagnostic and monitoring equipment including X-ray machines.
