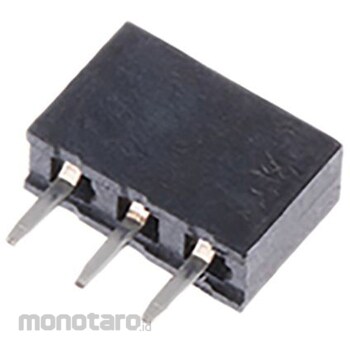

HARWIN HARWIN PCB Socket, 3-pole, 2mm, 1-row, Through-hole mounting

Specification
*Number of poles: 3*Number of rows: 1*Pitch: 2mm*Type: Socket Strip*Mounting type: Through hole mounting*Connection direction: Straight*Termination method: Solder*Rated current: 12A*Contact material: Bronze*Harwin M22 Series 2mm PCB Sockets. The M22 series PCB through hole mounting industry standard sockets feature a fine pitch of 2mm and are designed for board to board applications. This M22 series connector features a high quality and compact design to meet the design requirements for increased PCB density and height restrictions. The housings of this M22 socket are made from UL94V-0 high temperature liquid crystal polymer and can withstand the same reflow soldering process as SMT types. Durable gold plated dual beam contacts improve electrical connection and increase the overall reliability of the connector. This M22 PCB socket connector is available in single and dual row configurations and various contact counts. . Features and Benefits. Fine pitch: 2 mm Compact design High temperature thermoplastic housing Highly reliable dual beam contacts Up to 300 mating cycles Maximum current rating: 2 A/contact. Product Application Information. The M22 series PCB sockets are suitable for a wide range of applications and have established themselves as standard connectors in embedded PCs, motherboards and electronic systems. Typical applications include consumer electronics, communications, drive and control, industrial monitoring and personal computing. .
