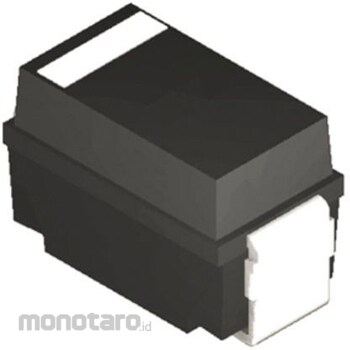

HY Electronic Corp HY Electronic Corp Fast Recovery Rectifier Diode, 1A, 200V Surface Mount, 2-Pin DO-214AC (SMA) Silicon Junction 950mV

Mounting Type = Surface Mount Package Type = DO-214AC (SMA)
Maximum continuous forward current = 1A
Peak reverse repetitive voltage = 200V
Diode Configuration = Single Rectifier Type = Fast Recovery Diode Type = Rectifier Pin Count = 2
Maximum forward voltage drop = 950mV
Number of elements per chip = 1
Diode Technology = Silicon Junction Peak Reverse Recovery Time = 35ns
Peak non-repetitive forward surge current = 30A
Ultra Fast Recovery Rectifiers - Surface Mount, HY Electronic (Cayman) Limited. HY Electronic (Cayman) Limited offers a wide range of glass passivated surface mount diodes. These diodes offer superior manufacturability due to their ultra fast switching times, high current carrying capacity and low forward voltage drop. Products are available with reverse voltages from 100 to 600 V with forward currents ranging up to 3 A. Low reverse leakage current Case plastic material: UL94V-0 flammability rating Polarity: Cathode
