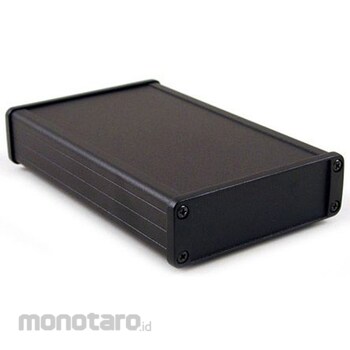

HAMMOND Hammond, Aluminum, Height: 34.9 mm, Depth: 106.9 mm 1457L1601BK

Material = Aluminum Depth = 106.9 mm
Height = 34.9 mm
Width = 171.2 mm
Dimensions = 106.9 x 171.2 x 34.9mm
Range = 1457
Colour = Black
Lid Color = Black Flange = None Shield = None Series = 1457
Weight = 114g
Gasket Material = Polyethylene Foam
Hammond 1457 Extruded Aluminum Enclosures. Hammond 1457 series enclosures have an extruded aluminum body and two die-cast aluminum end panels with integral bezels. The enclosure is designed to interface with or house a PCB. Features and Benefits. Rugged body construction of 1.5 mm thick extruded aluminum Standard Eurocard size PCB aligns and slides horizontally into internal slot extruded inside the enclosure body Extruded body has recesses for labels or membrane keypad End panels finished in black satin powder coat IP65 protection
