Altera Altera Programmable Logic Development Tools CPLD MAX V

Programmable Logic Technology = CPLD
Kit Category = Development Kit Target Device = 5M570Z
Kit Name = MAX V

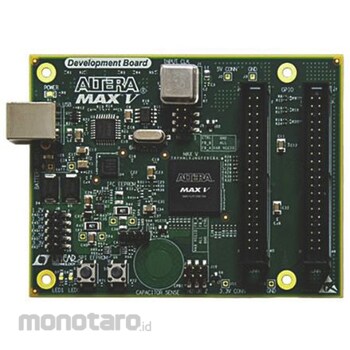

USB cable, license-free QuartusR II Web Edition software. MAX V CPLD Development Kit. The Altera MAX V CPLD Development Kit is a complete design environment that includes both the hardware and software needed to prototype the most common CPLD applications, including I/O expansion, interface bridging, power management, initialization control, and analog interface control. . Measures CPLD ( ;sub>;VCCINT ;/sub>; and ;sub>;VCCIO ;/sub>;) power consumption Bridges between two different I/O voltages (adjustable ;sub>;VCCIO ;/sub>; on CPLD bank 2) Interfaces to external functions or devices through four connectors Memory read/write 8 Kb User Flash Memory (UFM) available on 5M570Z CPLD I2C/SPI EEPROM (user installed) Get your CPLD design up and running quickly by reusing the provided example designs Reuse the kit's PCB board and schematics as design models Built-in USB-Blaster circuit for CPLD configuration User LEDs, push buttons, and capacitor sense buttons Standard PC speaker header Two DC motor headers GPIO connector for mating with daughter cards
