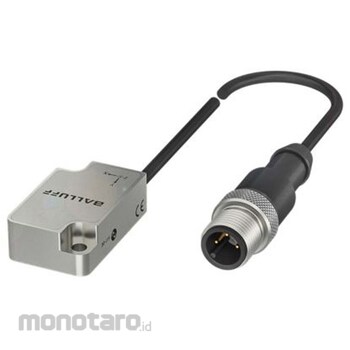

Balluff Production Monitoring System

BALLUFF condition monitoring sensors detect and process various physical variables such as vibration, temperature, relative humidity and air pressure and provide the host system with the required data via IO-Link. Thanks to the standardized IO-Link protocol, the sensors can be easily parameterized and the processing at the sensor can be adapted to the specific application. Thanks to the process data structure, up to five measurement or preprocessed data can be freely configured and transmitted cyclically. FunctionsVibration velocity, vibration acceleration, vibration severity zone, contact temperature, sensor self-recognition Vibration, frequency range: 2 → 3200 Hz Vibration, number of measuring axes 3 Vibration velocity, measuring range RMS 0 ... 220 mm/s @ 79.4 Hz Vibration acceleration, measuring range: RMS 0 → 16 g
