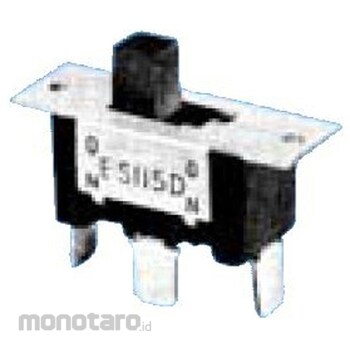

Nidek Components (formerly Nidec Copal Electronics) Small slide switch ES series

Specification
*Type: Slide*Number of poles: Single pole*Function operation: ON-ON*Operation part shape: Square*Terminal part shape: Tab terminal*Terminal pitch: Rated: AC250V-15A*Stroke: 8mm*Circuit switching timing: Non-shorting*LED: None*Implementation: Quantity: 1 piece*Operation direction and internal structure of slide switch*Difference in operation direction*As the name suggests, a slide switch is a switch that is operated by sliding the knob. *In Figure 1 a), the knob is arranged vertically and is operated from above the part. *In Figure 1 b), the knob is arranged horizontally and is operated from the side. *In Figure 1 c), the knob is arranged horizontally, but the sliding operation is in the up and down direction. *Select according to the function and purpose. *Internal structure*Figure 2 shows the structural principle of a typical 1-circuit 2-contact slide switch. *The internal movable contact (metal) is slid via the knob, and when it is slid to the left as in Figure 2 a), terminals 1 and 2 are connected via the movable contact. *Furthermore, if you slide it to the right as shown in Fig. 2 b), this time terminals 2 and 3 will be connected. **The number of circuits, number of contacts, and wiring connections differ depending on the switch, so check the circuit diagram and select according to function and purpose.
