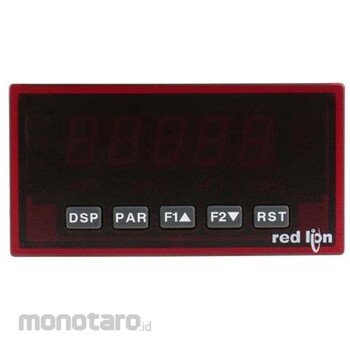

RED LION Digital Panel Meter LED PAX Series (Display Indikator)

Red Lion Analog Input Panels Red Lion Analog Input Panel Meters are indicators with several features and performance to accommodate a variety of industrial applications. Measure a variety of analog inputs. Optional plug-in output cards allow the meter to be configured for your current application and easily upgradeable in the future. Display brightness is adjustable from dark room applications to readable in direct sunlight, making it ideal for viewing in well-lit areas. The meter offers maximum and minimum reading memory and a programmable capture time. The capture time is used to prevent detection of false MAX or MIN readings which may occur during start-up or abnormal process events. Features and Benefits Rated supply voltage: 11 to 36 V dc, 24 V dc 5-digit, 0.56 inch, red, sunlight readable display Measurement ranges are -2mA to 26mA and -1VDC to 13VDC Adjustable display brightness 16-point scaling for non-linear processes Configurable function keys/user inputs 9-digit totalizer (integrator) with batch processing Optional custom unit overlay with backlight Four setpoint alarm outputs (with option card) Communication and bus capabilities (with option card) Retransmitted analog output (with option card) Crimson® programming software Cut-out width is 92 mm, depth is 104.1 mm, height is 45 mm Operating temperature range: -10 to 50°C Certified NEMA4X IP65 rated sealed front bezel CE certified cULus certified ANSI/ESD S20.20:2014 BS EN61340-5-1: 2007
