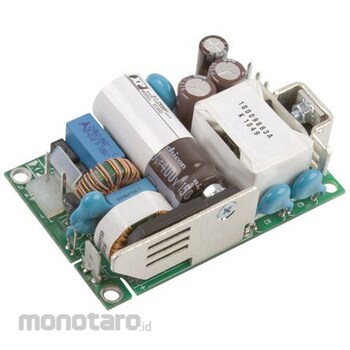

XP POWER XP Power Switching Power Supply 24V dc 2.5A 60W ECS60US24

Specification
XP Power AC/DC Power Supplies XP Power ECS Series 60 W Rated AC-DC Power Supplies with Single Output have a rated output current of 2.5 A @ 24 V dc. This product is universal with a rated input supply voltage of 80 to 264 V ac. Features and Benefits Convection cooled High reliability ITE and medical certified Low leakage current No-load input power <0.3W Operating temperature range: -20 to 70°C Packaging footprint: 2" x 3" Ultra-low profile and open frame 0.95" high Maximum efficiency: 90% Certified ANSI/AAMI ES60601-1 Class I and II Construction CSA22.2 No. 60601-1 (UL) EN55022 and EN55011, Level B Conducted EN55022 Level A Radiated EN60601-1 EN60601-1, 30% 500ms, 60% 100ms, 100% 10ms, 100% 5000ms, Perf Criteria A, A (50% load), A, B EN60601-1-2 EN60950-1 EN61000-3-2, Class A EN61000-3-3 EN61000-4-11, 30% 10ms, 60% 100ms, 100% 5000ms, Performance Criteria A, B, B EN61000-4-2, Level 3 Performance Criteria A EN61000-4-3, 10V/m Operating Condition A EN61000-4-4, Level 3 Performance Criteria A EN61000-4-5, Level 3 Performance Criteria A, SEMI F47 EN61000-4-6, 10V Performance Criteria A EN61204-3 FCC 20780 UL60950-1
