FTDI Chip FTDI Chip USB-UART Cable for Raspberry Pi TTL-232R-Rpi

Specification

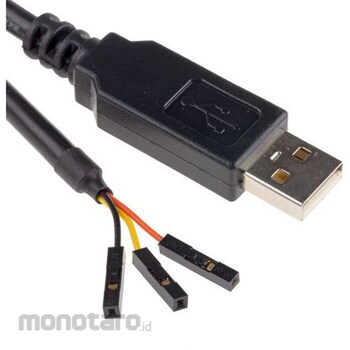

FTDI Chip Raspberry Pi USB-TTL Level Serial UART Converter Cable. FTDI's TTL-232R-RPi is a USB-TTL level serial UART converter cable designed for use with the Raspberry Pi. It features a Hi-Speed USB 2.0 compatible USB connector and three single-pole, 0.1m pitch headers that connect to the serial ports on the Raspberry Pi board. The cable is electrically configured to handle and drive UART signals at +3.3V logic levels. This cable simplifies the analysis and debugging of Raspberry Pi programming. This cable connects to the UART transmitter and receiver on the Raspberry Pi ARM processor, transmitting detailed information from the Linux kernel to the PC. Cable Signal Description: GND (Black) - Device ground supply pin. Connects to the RPi ground pin. TxD (Orange) - Transmits asynchronous data output. Connect to the RXD input on the RPi board. RXD: Yellow - Receives asynchronous data input. Connect to the TXD output on the RPi board. TTL-232R-RPi Key Features: Built-in EEPROM. Low current draw during operation and suspend. Low USB bandwidth consumption. High output drive option. UART pin signal inversion. FCC and CE compliant. 3.3 V TTL input. FCC and CE compliant. Communication Parameters: Baud Rate: 115200 baud, Bits: 8, Parity: None, Stop Bits: 1, Flow Control: None. Application Information: FTDI's TTL-232R-RPi cable provides a USB-to-TTL-level UART solution, customized for use with the Raspberry Pi. Raspberry Pi Community: A large and growing community is rooted in the Raspberry Pi. The Raspberry Pi site features projects, blogs, and downloadable software to help you get started or spark ideas. There is also a forum section where you can discuss and get help from other Raspberry Pi users, and there is documentation available, including help guides, to help you get started on your projects.
