FTDI Chip FTDI Chip Cable TTL-232R-5V

Specification

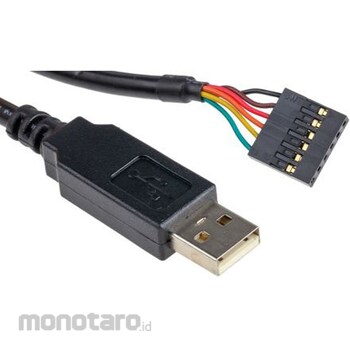

FTDI Chip USB-TTL UART Cable. FTDI Chip TTL-232x USB-to-Serial UART (TTL Level) Converter Cables allow you to quickly and easily convert your microcontroller's UART serial I/O to USB. The TTL-232R contains a small circuit board with an FT232x chip. It's housed within a USB-A connector, simplifying the cable's use. This circuit is powered from the USB +5V power pin. The Vcc connection is always +5V DC; however, +3.3V or +5V signals can be used with TTL logic levels. These cables are compatible with Microsoft WHQL-certified VCP drivers for Windows, Apple Mac, and Linux, which are available free of charge from the FTDI website . USB 2.0 compatible. Cable length: 1.8 m. Data transfer rates: up to 3 Mbps (FT232R), 12 Mbps (FT232H). Includes a unique serial number for security purposes when transferring files over the cable. Powered from the USB connector. Various UART termination options available. CE/FCC compliant. Available options: PCB-mounted USB connector only (no cable). FTDI Chip TTL-232R-3V3-PCB (RS 429-284) with +3.3 V UART signaling. FTDI Chip TTL-232R-5V-PCB (RS 429-278) with +5 V UART signaling. USB connector/wire-ended 6-core with 24 AWG output. FTDI Chip TTL-232RG-VSW3V3-WE (RS 715-8522) (RS 715-8522) +3.3 V UART signaling FTDI Chip TTL-232RG-VSW5V-WE; (RS 730-0155) (RS 730-0155) +5 V UART signaling FTDI Chip TTL-232RG-VREG3V3-WE; (RS 715-8529) (RS 715-8529) +3.3 V UART signaling FTDI Chip TTL-232RG-VLG8-WE; (RS 715-8525) (RS 715-8525) +1.8 V UART signaling FTDI Chip TTL-232RG-VIP-WE; (RS 715-8513) (RS 715-8513) Includes a reference voltage for setting the UART signaling level. FTDI Chip TTL-232R-3V3-WE: (RS 429-303) (RS 429-303) +3.3 V UART signaling (v1) FTDI Chip TTL-232R-5V-WE: (RS 687-7786) (RS 687-7786) +5 V UART signaling (v1) USB connector/6-pole, 0.1 inch single in-line connector FTDI Chip TTL-232R-3V3: (RS 429-307) (RS 429-307) +3.3 V UART signaling FTDI Chip TTL-232R-5V: (RS 687-7770) (RS 687-7770) +5 V UART signaling USB connector/8-pin, keyed 2mm pitch connector FTDI Chip TTL-232R-3V3-2mm; (RS 687-7780) (RS 687-7780) +3.3 V UART signaling USB connector/3.5 mm audio jack connector FTDI Chip TTL-232R-5V-AJ; (RS 687-7774) (RS 687-7774) +5 V UART signaling FTDI Chip TTL-232R-3V3-AJ; (RS 687-7783) (RS 687-7783) +3.3 V UART signaling
