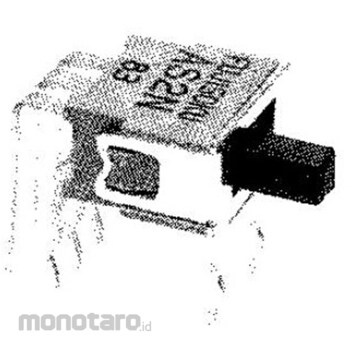

Nidek Components (formerly Nidec Copal Electronics) Ultra-compact slide switch AS series

Specification
*Type: Slide*Number of poles: 2 poles*Function operation: ON-ON*Operation part shape: Square*Terminal part shape: RA terminal (0.3 inch pitch)*Terminal pitch: 2.54mm*Rating: AC/DC48V-50mA*Stroke: 2.2mm*Circuit switching timing: Non-shorting*LED: None*Implementation: Quantity: 1 piece*Operation direction and internal structure of slide switch*Difference in operation direction*As the name suggests, a slide switch is a switch that is operated by sliding the knob. *In Figure 1 a), the knob is arranged vertically and is operated from above the part. *In Figure 1 b), the knob is arranged horizontally and is operated from the side. *In Figure 1 c), the knob is arranged horizontally, but the slide operation is in the up and down direction. *Select according to the function and purpose. *Internal structure*Figure 2 shows the structural principle of a typical 1-circuit 2-contact slide switch. *The internal movable contact (metal) is designed to slide via a knob, and when it is slid to the left as shown in Fig. 2 a), terminals 1 and 2 are connected via the movable contact. *Also, when it is slid to the right as shown in Fig. 2 b), terminals 2 and 3 are connected. **The number of circuits, number of contacts, and wiring connections differ depending on the switch, so check the circuit diagram and select according to function and purpose.
