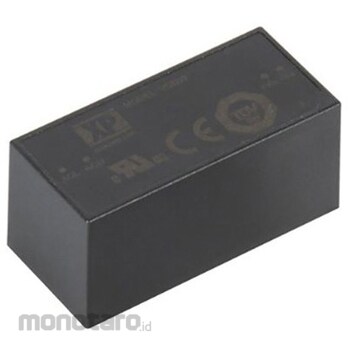

XP POWER AC/DC converter 12V dc 250mA 3W
#Grup produk P116249272
Spesifikasi
| AS ONE Part Number | 65-7213-12 |
|---|---|
| Accuracy (%) | 1(Initial Set) |
| Cooling Method | Convection-cooled |
| Delay Time (s) | 2 (Start) |
| Dimensions (mm) | 40.6x19.1x19.1 |
| Efficiency | 0.8 |
| Humidity (% RH) | Max 95 (no condensation) |
| Input Current (A) | 0.1/0.06/0.04rms(At 115/230/277VAC)[Full Load] |
| Input Frequency (Hz) | 47~63 |
| Input Power (W) | Max0.3(No Load) |
| Input Voltage Range (V) | AC85~305 |
| Inrush Current (A) | Max40/44.2(At 230/277VAC,cold start 25°C) |
| Mass (g) | 30 |
| Number of Outputs | 1 |
| Operating Temperature Range (°C) | -25~+70 |
| Output Current (mA) | 250 |
| Output voltage (V) | DC12 |
| Overload Protection | 130~170% |
| Overvoltage Protection | 115~140% Vnom |
| Package | Closed type |
| Rated Power (W) | 3 |
| Safety Standard | CB,UL,TUV,CE,UKCA |
| Start-up Time | 30ms |
| Storage Temperature Range (°C) | -40~+85 |
| Switching Frequency (kHz) | 5~52 |
| Temperature coefficient | 0.02%/°C |
| Type of Terminal Fitting | PCB mount |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The VCE03 is an open frame and sealed AC-DC single output power supply designed for low cost ITE, industrial and residential applications. The series offers two structural options: open frame and sealed board mount. These Class II isolation components offer system designers the benefit of easy integration into a variety of applications. Ultra-compact SIL package
