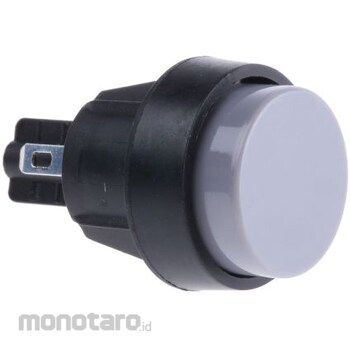

MARQUARDT Marquardt pushbutton switch 4 A

Specification
Contact configuration: 1-pole on-off switch * Mounting type: Panel mount * Panel cutout size: 16mm * Panel cutout diameter: 16mm * Contact rated current: 4 A @ 12 V dc * Actuator color: gray * Terminal type: Tab * UL, CSA, ENEC. Part number: 741-0776 741-0776 and 607-7804 607-7804 has a fixing pin under the panel cut-out bezel. Current ratings and life expectancy provided are nominal. See data sheet for details. Marquardt 5000 Series Push Button Switches. Marquardt 5000 series round push button switches are single pole, normally open switches suitable for Class II equipment. This round pushbutton switch requires a 16 mm cutout for panel mounting. You can also choose a color actuator with IP40 or IP54 rating dust and waterproof sealing. The Marquardt 5000 series pushbutton switches have a long mechanical life and feature 2.8 mm faston / quick connect terminals. Contact distance: 3 mm or more Pre-travel: 2 ± 0.4 mm Total travel / stroke: 4 mm Flammability: UL 94 V-2 Mechanical life: 200,000 times
