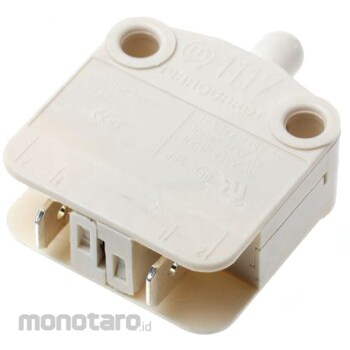

MARQUARDT Marquardt push button switch

Specification
Contact Configuration: SPST-NC; Switch Action: Maintained; Contact Current Rating: 16 @ 250 ac; Terminal Type: Tab; Actuator Type: Plunger; Contact Material: Silver; IP Rating: IP40; Operating Temperature Min: -40°C; Operating Temperature Max: +85°C; Operating Temperature Range: -40 +85°C; UL, CSA, ENEC. Marquardt Pushbutton Switches 1115 and 1117 Series. The Marquardt 1115 and 1117 Series are single-pole snap-action switches with high switching capabilities up to 16 A. Both the 1115 and 1117 Series snap-action switches feature actuators that can be operated in most directions, making them ideal for door opening and closing applications. These Marquardt snap-action switches offer a variety of contact configurations, with each contact terminated in a 6.3 mm Faston or quick-connect terminal. Flammability rating: UL 94 V-0 Mechanical life: 100,000 cycles Suitable for use in Class II applications
