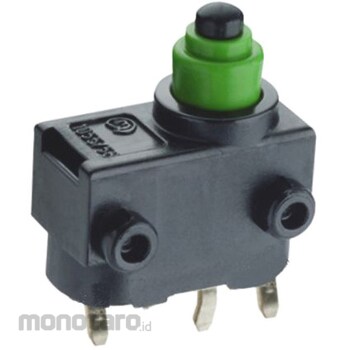

MARQUARDT Marquardt Micro Switch Button SPDT

Specification
Actuator Type: Button; Terminal Type: Pc Pin; Contact Current Rating: 4 @ 12 dc; Contact Configuration: SPDT; IP Rating: IP00, IP40, IP67; Operating Force: ≤1.8 N; Operating Temperature Min: -40°C; Operating Temperature Max: +85°C; Contact Material: Silver (Gold Plated); Case Material: PBTP (Polybutylene Terephthalate); Mechanical Life: 500,000 Cycles; Operating Temperature Range: -40 +85°C; Rated Load is Ohmic; this value and the stated life expectancy are nominal. See datasheet for more information. Marquardt IP40 IP67 Waterproof Subminiature Snap Action Switches 1055 Series. Marquardt 1055 Series Snap Action Single-Pole Switches The 1055 Series snap action switches feature a compact design with a dust-tight and waterproof switching system rated to IP67 (part numbers 741-0984 and 741-0993) or IP40 (part number 741-0980). The Marquardt 1055 Series offers a contact resistance of 50 mΩ and an insulation resistance of >100 MΩ and is available with plunger actuators with solder or pre-wired terminals. Waterproof, IP67 rated, see part numbers 741-0984 and 741-0993 Specially designed actuator guide allows for a 40° actuation angle 3mm contact spacing UL94 HB flammability rating Part numbers 741-0980 and 741-0984 have mounting pins on the right side of the switch body, 1.5mm long. Part number 741-0993 has mounting pins on both sides of the switch body, each 2.5mm long.
