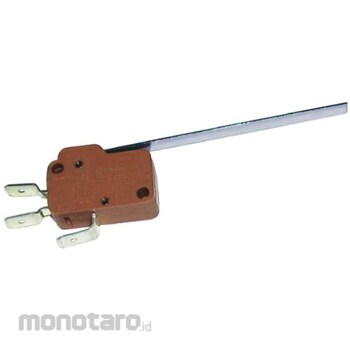

MARQUARDT Marquardt Micro Switch Hinge Lever SPDT

Specification
Actuator Type: Hinge Lever; Terminal Type: Tab; Contact Current Rating: 10 A @ 250 V ac; Contact Configuration: SPDT; Operating Force: 0.3 -> 0.55 N; Operating Temperature Min: -40°C; Operating Temperature Max: +100°C; Switch Housing: V0 Housing; Contact Material: Silver; Case Material: Thermosetting Plastics; Mechanical Life: 5,000,000 Cycles; Operating Temperature Range: -40 -> +100°C; UL, CSA, ENEC. The current ratings and expected life expectancy listed are nominal. See datasheet for details. Marquardt Miniature Snap-Action Switches - 1005 Series. Marquardt 1005 Series Miniature Snap-Action Single-Pole Switches. The 1005 series snap-action switches are designed to DIN 41635A; they have a contact resistance of 100 mΩ and an insulation resistance of >100 MΩ. The Marquardt 1005 series offers a variety of actuators and terminals. 3mm contact spacing (except part numbers 741-0978 and 741-0978, which have contact spacings greater than 3mm). 10ms bounce time. UL94 V-2 flammability rating.
