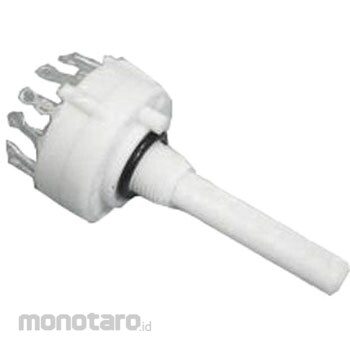

LORLIN Lorlin rotary switch

Specification
Width: 26.2 (Dia.) Mm * Dimensions: 26.2 (Dia.) X 47.1mm * Terminal type: Solder Tag * Standard conformity: RoHS compliant, UL-V0 * Lorlin CKF series IP65 shielded rotary switch. CKF series is general It is designed to have the same shape, fit, and electrical rating as the CK, plus IP65 rated front panel seal ratings. The damping of switching movements and the reduction of axial play ensure that high-quality single-deck multipole switches are suitable for a variety of signal applications. These switches have up to 4 poles per switch and 12 positions. Products with soldering terminals or board terminals are also available. Made in the UK Cost-effective single-wafer switch Molded 27.5 mm diameter Standard 30 ° index Solder or PCB terminal Switch max 4 positions Max 12 positions Short (make before break 30 ° index only) or non-short (break before make) contact Smooth feel due to reduced index and reduced shaft play Front panel with IP65 grade seal construction
