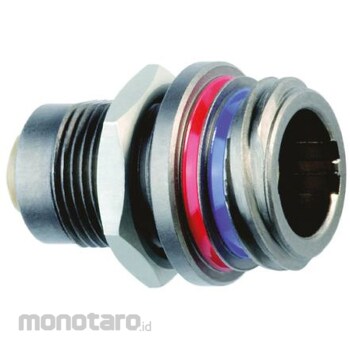

LEMO Lemo Din socket

Specification
Number of contacts: 12, Male / Female: Female, Mounting type: Panel mount, Connector size: Standard, Joining type: Quick connect, Terminal method: Crimping, Body orientation: Straight, Rated current: 7A, IP protection class: IP68, Shield / Non-shield: Shield, Series: 2M, Housing material: Aluminum alloy, Operating temperature + Min: -55 °C, For related connectors, representative part number +; + 760-0115 + 760-0115 +, +; + 760-0127 See + 760-0127 +, +; + 760-0137 + 760-0137 + and related products. For + contacts, see part number +; + 760-0082 + 760-0082 + and +; + 760-0086 + 760-0086 +. + Lemo + M Series Panel Mounted Circular Socket Connector. + Lemo + M Series panel mount circular socket connectors are made of high quality, high strength anodized aluminum and provide IP68 protection when mated. The + M series connector is one of the smallest multi-pin, vibration-resistant shielded connectors, providing lightweight connections with high pin count density and 3600 + EMC shield protection. + These panel mount socket connectors are ideal for many applications such as automotive and aircraft electronic components, military and motorsports. The + Lemo + M series circular panel mount connector products offer superior size and weight compared to the MIL-38999 connector. + Designed for use in harsh environments, Lemo + M series connectors have undergone all types of MIL testing, including foaming, altitude, vibration, lightning strikes, temperature, immersion, chemicals and flammability. . + Compact, highly durable design that saves space in harsh environments + Precision gold-plated female contacts + Small size with high contact density + Keyways for easy insertion and removal and security + Operating temperature range: + -50 + -> ++ 200 + °C + 360 ° shielding for complete EMC shielding + IP68 grade sealing structure when mated + sand and dust proof + scoop proof
