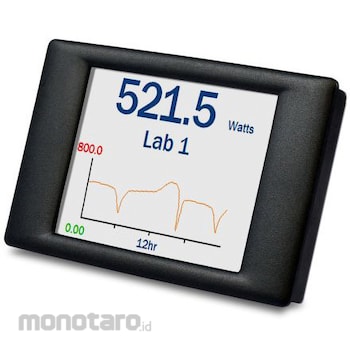

Lascar Lascar digital panel meter

Specification
Characteristic measurement: Current, Display type: TFT, Cutout height: 54.5mm, Cutout width: 87mm, Depth: 17.8mm, Minimum temperature: 0°C, Maximum temperature: +40°C, Series: PanelPilot, PanelPilot series -Current Loop Indicator. The panel pilot series of color TFT graphic meters can program and display the meter style provided by traditional panel meters. With this software, users can customize colors, text labels, splash screens, and input scales, all uploaded to the meter via a USB connection. After programming is complete, all selections can be stored on the meter and computer, the device can be removed and mounted on the panel like a standard display. Color TFT screen 320 x 240 pixels (QVGA) 4 -> 20 mA current loop measured (10 -> 50 mA or 0 -> 50 mA also possible) Digital hold function Operating voltage: 4 -> 30 V dc Programmable via USB interface PanelPilot software to set and customize the display Simple panel mounting solution. Various display sizes. 2.4 inch (Part number: 777-6836 777-6836) 2.8 inch (Part number: 777-6830 777-6830) 3.5 inch (Part number; 777-6849) 777-6849 ). PanelPilot software. PanelPilot software is freely downloadable from the web. Control software that is easy to install and use is available for Windows XP (Home and Professional), Vista and Windows 7. This software allows you to configure the appearance and behavior of your meter and upload those settings to your meter.
