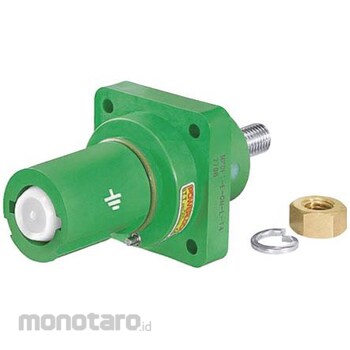

ITT CANNON ITT Cannon Power Connector (Industrial Connector) Veam Powerlock Series Panel Mount Socket

Specification
Rated current: 660A, Plug/Socket: Socket, Rated voltage: 1 kV ac, Mounting type: Panel mount, Body orientation: Straight, Operating temperature Min: -30°C, Operating temperature Max: +125°C, Series: Veam Powerlock, IP67, UL94-V0, IP2X. Never remove the connector under load. Interconnection of 400 A and 600 A connectors is possible, but not recommended for power systems. When constructing a network, be careful not to exceed the power capacity of the connector. . Panel Drain Connector 660 A. ITT VEAM PowerLock Panel Drain Connector is a power distribution connector that can be installed outdoors and is playing an active role as the basis of a wide range of industrial fields. Its applications include heavy duty generator power distribution connectors that require a robust and wear-resistant power supply connector, and are used in a wide range of fields such as carnivals, outdoor concerts, sporting events, etc. ITT VEAM Powerlock Panel Drain Connector is a 1 pole connector that mates with a line power connector that has the same color coding as part of the daisy chain of power supplies. . Female contact included. Contact protection nose with hard IP2X spring O-ring that guarantees IP67 rating when mated
