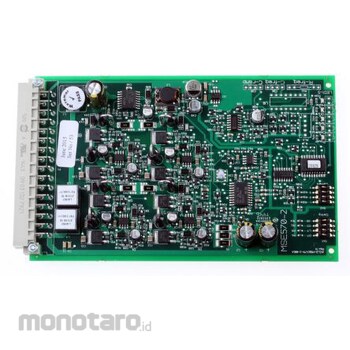

McLennan Servo Supplies Stepper Motor Driver McLennan Servo Supplies

Specification
For motor type: Bipolar * Allowable current value: 3.5 A * Board power supply voltage: 15 -> 48V dc * Total length: 160mm * Overall width: 100mm * Overall depth: 35.5mm * Suitable for use with motors: stock nos . <432-8273 ') 432-8273 /, <440-442') 440-442 /, <440-464 ') 440-464 /, <440-470') 440-470 /, <191-8328 ' ) 191-8328 /, <191-8362 ') 191-8362 /, <191-8378') 191-8378 /, <191-8384 ') 191-8384 /, <340-3711') 340-3711 /, <340-3727 ') 340-3727 / and <340-3733') 340-3733 /. Slimline Bipolar Stepper Motor Drive.Drives motors up to 40V at 3.5A Adjustable drive current settings from 0.5 to 3.5A Output overload protection Synchronisation output for multi-axis systems Full and half step drive modes TTL & CMOS compatible control interface Output disable input 5 & 12Vdc auxiliary outputs for external device energisation Status LED's for condition monitoring Provision for assembling on-board oscillator with ramp, low and high speed ranges Single rail power supply for both motor drive and logic supplies
