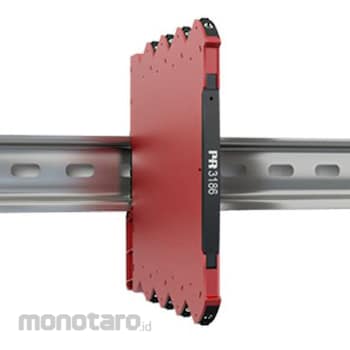

PR Electronics Galvanic Insulator PR Electronics 1 Channel Converter

Specification
Barrier Type: Relay, Number of Channels: 1, Supply Voltage: 6 to 35 V DC, Maximum Safe Voltage: 300 V AC, Maximum Safe Current: 35 mA, Signal Type: Converter, Operating Temperature Min: -25°C, Operating Temperature Max: +70°C, Series: 3186, 3100 Type - 2-Wire Transmitter Isolator. The 3186 type is a 1- or 2-channel input loop-powered isolator. The input and output are floating and galvanically isolated. The converter eliminates earth loops, allowing it to be used to measure floating signals. 1:1 output loop-powered isolator with 2-wire transmitter. Excellent accuracy. 1-channel version: Part numbers 796-7109 and 136-8709. 2-channel version: Part numbers 796-7118 and 136-8710. 1:1 signal function range 3.5-23 mA. Low input-to-output voltage drop: 2.5 V typical. Fast response time: 5 ms. Excellent signal-to-noise ratio: > 60 dB. Host loop voltage powered. Wide supply range 6-35 V. High galvanic isolation 2.5 kV ac. Suitable for installation in safe areas or Zone 2 and Class 1 Division 2 areas. 6 mm low-profile housing. DIN-rail mounting.
