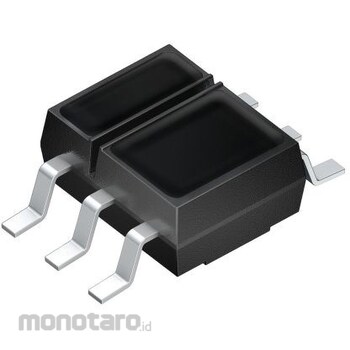

OSRAM Opto Semiconductors OSRAM Reflective Photointerrupter

Specification
Peak sensor distance: 1 -> 5mm, Output device: Phototransistor, Standard rise time: 30μs, Standard fall time: 40μs, Pin number: 6, Mounting type: Surface mount, Dimensions: 4.2 x 3.4 x 2.1mm, Height: 2.1 mm, Length: 4.2mm, Operating temperature Max: +100°C, Operating temperature Min: -40°C, Width: 3.4mm, Operating temperature range: -40 -> +100°C, SFH 9206 SMT reflective sensor. OSRAM Opto Semiconductors The SFH 9206 family of is a reflective sensor with phototransistor output. It is available in a surface mount (SMD) package that includes a 950 nm LED and a silicon NPN phototransistor. The package also includes a daylight filter. Suitable applications for the SFH 9206 reflective sensor are position reporting, end position switches, speed regulation and motion transmitters.
