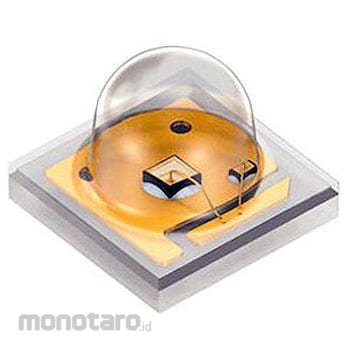

OSRAM Opto Semiconductors OSRAM Visible Light LED OSLON SX Series

Specification
LED color: Yellow * Package type: 3030 (1212) * Mounting type: Surface mount * LED number: 1 * Forward voltage: 2.25 V * Luminous intensity: 15 cd * Pin count: 2 * View angle: 60 ° * Luminance flux: 28 lm * Lens shape: Cannonball type * Main wavelength: 590 nm * Dimensions: 3.1 x 3.1mm * Lens color: Clear * OSRAM OSLON SX series LED-Single color. Osram Opto Semiconductors OSLON SX series small LED is a ceramic SMD LED with silicon resin lens in the package. The high flux LED of OSRAM OSLON SX LED is small in size, so it is ideal for applications where space is very important, such as signal lights / warning lights / tail lights, decorative lighting, and vehicle interior lighting (backlight lighting for dashboard). .. Compact SMT ceramic package: 3 x 3 mm integrated silicon lens: 60 ° beam angle
