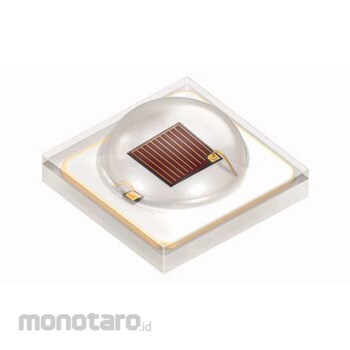

OSRAM Opto Semiconductors OSRAM high power LED OSLON SSL 150 series

Specification
LED Color: Yellow * Package Type: 3030 (1212) * Mounting Type: Surface Mount * Number of LEDs: 1 * Forward Voltage: 2.2 V * Number of Pins: 2 * View Angle: 150° * Luminance Flux: 76 lm * Lens Shape: Dome * Dominant Wavelength: 593 nm * Dimensions: 3 x 3 x 1.59 mm * Forward Current: 1000 mA * OSRAM OSLON SSL 150 Series Single-Color LED. OSRAM Opto Semiconductors' OSLON SSL 150 high-power color LEDs offer excellent optical and thermal performance and a wide-angle radiation pattern (150°), making them ideal for reflector, diffuser, and color mixing designs. OSRAM OSLON SSL 150 LEDs are ideal for applications requiring durability and high efficiency. These 1 W high-power LEDs ensure a uniform, wide radiation pattern over a 150° viewing angle. The OSLON SSL 150 series SMD LEDs are ideal for a variety of indoor and outdoor applications, including residential lighting retrofits, residential luminaires, spotlights, task lights, shelf lights, and downlights. They feature an SMT ceramic package with silicone resin and lens. High-brightness LEDs of 1000 mA and outstanding luminous efficiency. The compact symmetrical 2000 x 2000 mm package allows for dense clustering for high-flux arrays. The flat lens minimizes internal shading, even with dense clustering. The OSLON SSL 150 has a maximum drive current of 1000 mA. Its low thermal resistance allows for cool operation. Part 866-1212 is designed for horticultural applications. Note: Originally designed for automotive brake lights, the OSRAM orange LED has a long dominant wavelength, resulting in a reddish glow. To find the LED you need, refer to the dominant wavelength color chart.
