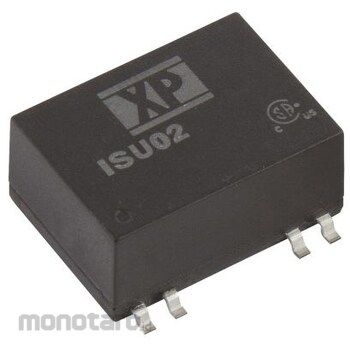

XP POWER XP Power Isolated DC-DC Converter ISU02 Series

Specification
Output voltage: ±12 V dc, Input voltage range: 4.5 -> 12 V dc, Input voltage nominal: 5 V dc, Insulation voltage: 1.5 kV, Rated power: 2 W, Output current: ±83 mA, Mounting type: Surface mount, Number of outputs : 2, Efficiency: 81%, Package: SMD, Load regulation: ±1.0%, Maximum temperature: +95°C, Series: ISU02, XP Power-ISU02 series isolated DC-DC converter. XP Power ISU02 series is , A reliable stable single/dual output, 2W isolated DC-DC converter. Products in this series are housed in a compact SMD package, have a 4:1 input range and meet all ITE safety approvals. In addition, these compact DC-DC converters have a withstand voltage of 1500 V dc, a wide operating temperature range of -40 to +95 °C, and support remote on/off. All ISU02 converters come with a 3-year warranty. An optional version compatible with water washing is also available. Features and Benefits Stable Single/Dual Output 4:1 Wide Input Range ITE Safety Certified Remote On/Off Small SMD Package 3 Year Warranty Optional Washable Version
