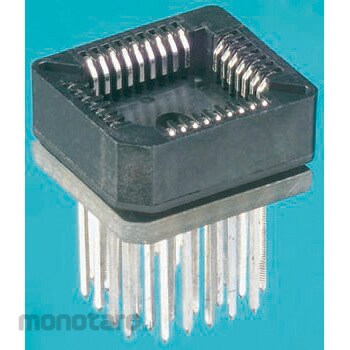

Winslow Winslow PLCC socket

Specification
Male/Female: Female *Number of contacts: 20 *Body orientation: Straight *Contact material: Copper phosphate *Pitch: 2.54 mm *Contact plating: Tin on copper *Mounting type: Through hole *Terminal method: Solder *Rated current : 1A * Rated voltage: 100 V ac, 150 V dc * Housing material: Glass fiber reinforced PET * Height: 10.8 mm * Operating temperature Max: +105°C * Operating temperature Min: -55°C * Square socket. Wire wrapping , PLCC socket. Standard PLCC socket with phosphor bronze contacts on an adapter style base with tin plated wire wrap pins on nickel plating. The pins are 13 mm long and allow 3 wraps. .Rated voltage: 100 Vac rms / 150 Vdc Insulation resistance: 1000 MΩ Standard life: 100 cycles Ambient temperature range: -55 -> +125 °C
