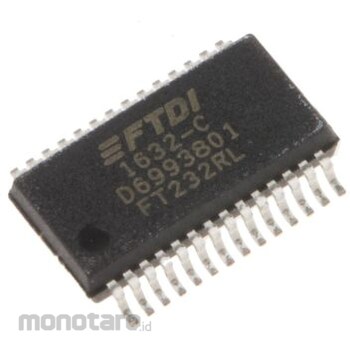

FTDI Chip USB to serial TTL level UART

Specification
Mounting Type: Surface Mount, Package Type: SSOP, Pin Count: 28, Dimensions: 10.2 x 5.3 x 1.75 mm, Height: 1.75 mm, Length: 10.2 mm, Operating Temperature Max: +85°C, Operating Temperature Min: -40°C, FT232R - USB to Serial UART with Clock Generator, FTDI Chip. The FTDI Chip FT232R is a USB-to-serial UART interface device with an optional clock generator output. Asynchronous and synchronous bit-bang interface modes are also available. The EEPROM, clock circuitry, and USB resistors effectively form a "3-in-1" chip for various applications. An internally generated clock (6 MHz, 12 MHz, 24 MHz, or 48 MHz) can be used to drive a microcontroller or external logic. A unique FTDIChip-ID is burned into the device during manufacturing and can be read over USB, forming the basis for a security dongle. This can be used to protect customer application software from copying. Free drivers for the most common operating systems are available from the FTDI website . The FT232R is available in compact 28-pin SSOP (RS; 406-580 406-580) and 32-pin QFN (RS; 730-0168 730-0168) packages. - Single-chip USB-to-asynchronous serial data transfer interface - The entire USB protocol is processed on-chip, eliminating the need for USB-specific firmware programming - Fully integrated 1024-bit EEPROM storage descriptors and CBUS I/O configuration - Fully integrated USB termination resistors - Fully integrated clock generator requires no external crystal, optional clock output - Data transfer rate: 300 Baud -> 3 MBaud (RS422, RS485, RS232) at TTL levels - 128 B receive buffer and 256 B transmit buffer with buffer smoothing technology for high data throughput
