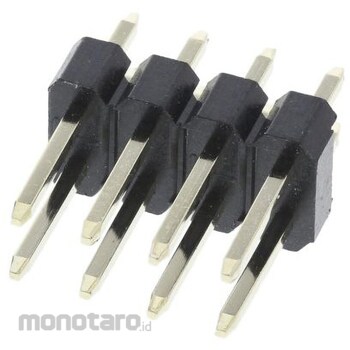

HARWIN HARWIN pin header M20 series 2.54mm

Specification
Harwin M20 2.54 mm board header connector. 2.54 mm pitch M20 series board through hole and SMT mounting header connector. These M20 2.54 mm PCB headers are available in 2-row and 1-row, vertical and right-angle configurations, making them a universal solution for a variety of applications. These M20 2.54 mm PCB pin header connector housings are available to accommodate various pin lengths. M20-975xxx, M20-976xxx, M20-977xxx: Pin length 5.8 mm. M20-995xxx, M20-996xxx, M20-998xxx, M20-999xxx: Pin length 6.1 mm. M20-997xxx: Pin length 8.5 mm. Both the PCB through-hole and SMT header housings are made of high temperature thermoplastic to withstand the same level of reflow soldering. The housing has castellations so it can be cut as required. Please be careful when cutting. These M20 2.54 mm board header connectors mate with M20 series board sockets, socket housings, and jumpers. Features and Benefits: Multiple configuration options for flexible designs and compatible pin lengths Thermoplastic housing that can withstand the reflow soldering process Can be cut as small as required. Applications. These M20 2.54 mm PCB headers are widely available It can be used for applications and has established itself as a standard connector for embedded PCs, motherboards and electronic systems. Major applications include consumer electronics, communications, drive and control, industrial monitoring, personal computing, and so on.
