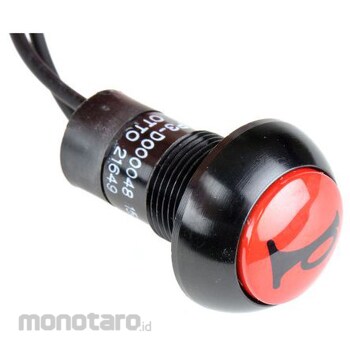

OTTO Otto pushbutton switch

Specification
UL, CSA. For the white body series, confirm the typical product number: 737-3787737-3787. For panel sealing, use the gasket with the product number: 737-3863737-3863. .OttoP9-black body push button switch IP68.Momentary action P9 series push button switch, with high / low two different heights of curved dome shaped push button, screwed case for mounting with hex nut, behind the panel This is a switch with a depth of about 12mm. P9 has a mechanical life of 1,000,000 times and an electrical life of 25,000 times under the full rated load of 5A of resistive current or 3A of induced current. The P9 series provides low levels of switching capability with low contact resistance and can be used in panels, control grips, computers, instrumentation, heavy equipment, and other harsh applications that require rugged pushbutton switches Designed to be precise. .Seal structure of IP68 waterproof grade (can be used underwater with 1m water pressure) 1N / O1N / C momentary contact (Form Z) Flat type and protruding dome button type are available in various colors. Mat finish or standard finish available Threaded body (panel knockout 12.827mm) Black bezel and body small size nut and panel seal gasket included Operating temperature -55 to 85 Contact rating 5A @ 28Vdc / 115Vac, 2.5A@250Vac
