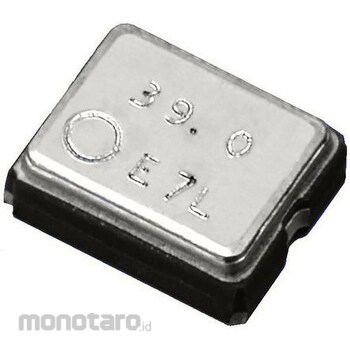

KYOCERA Kyocera crystal oscillator, 26 MHz, CMOS output, surface mount, 4-pin CSMD

Specification
Output frequency: 26 MHz, output level: CMOS, mounting type: surface mounting, frequency deviation: ±50 ppm, package type: CSMD, operating supply voltage Min: 1.6 V, operating supply voltage Max: 3.63 V, number of pins: 4, long Size: 2.5mm, Width: 2mm, Height: 0.7mm, Dimensions: 2.5 x 2 x 0.7mm, Operating temperature Min: -10 °C, Operating temperature Max: +70 °C, Load capacitance: 15pF, Kyocera C2520B-C1 clock Oscillator for Kyocera KC2520B-C1 Crystal oscillator with CMOS output. It is housed in a small ceramic package and is seamed to ensure high reliability. It produces a high output frequency of 125 MHz, but has low current consumption. The operating voltage range is 1.6 -> 3.63 V, and the power supply voltage 1.8 V, 2.5 V, 3.3 V can be supported. Suitable for servers, workstations, Ethernet switches, routers, digital cameras and televisions, factory automation, medical equipment, etc. Besides, it is suitable for data storage equipment, industrial products, automotive electronics products, etc.
