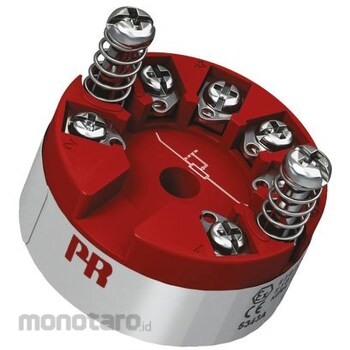

PR Electronics Temperature transmitter PR Electronics

Specification
Input type: Potentiometer, power supply voltage: 8 -> 30 V dc, diameter: 44 mm, operating temperature Min: -40°C, operating temperature Max: +85°C, series: 5300, depth: 20.2 mm, hazardous area certification: ATEX 5343A and 5343B are 2-wire level transmitters. Converts resistance fluctuations (from resistance level sensors, valve position, etc.) into standard analog current signals. . 2 versions of 5343 type:-5343A is standard type (Part number: 827-5432 827-5432)-5343B is ATEX, FM, IECEx; Version with INMETRO (Part number: 796-7127 796-7127) Potentiometer or resistance input programmable Sensor error value High measurement accuracy Proprietary process calibration function User-defined linearization function can be activated Transmitter has protection against reverse polarity Standard PC, PReset software and communication interface Loop Link (Part number; 796-7020 796- 7020) for mounting on a programmable DIN Form B sensor head
