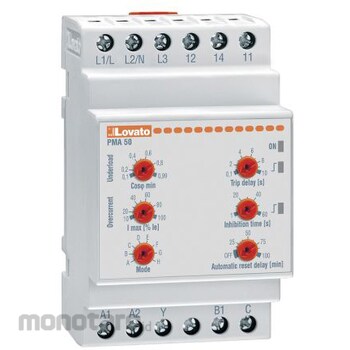

Lovato Monitoring relay Lovato SPDT 380 → 415V ac 64.9mm

Specification
Monitoring application: Current * Power supply voltage: 380 -> 415 V ac * Contact configuration: SPDT * Electrical phase: 1, 3 * Current sensitivity: overcurrent, low current * Minimum detection current: 0.1A * Maximum detection current value: 16A * Delay Time: 0.1 -> 10 seconds * Dimensions: 53.5 x 64.9 x 104.7 mm * Pump protection current monitoring relay, single phase / three phase. Lovato pump protection current monitoring relay is dry by auxiliary AC power supply, including single phase / three phase system. Protect from running With motor load and overcurrent control, it can be used directly with up to 16 A or via rectifier. Excellent trip accuracy, voltage control range from 80 to 660 V ac, 1 relay output and 1 changeover contact SPDT. Modular DIN 43880 housing, 3 modules Excellent trip accuracy IEC protection: IP40 (front) IP40 Enclosure on enclosure or control board IP20 (terminal) single-phase / three-phase system AC maximum current control Delayed trip Auxiliary AC power supply TRMS Automatic or manual reset of current measurement Reset and input suppression Missing phase, improper phase sequence Instantaneous trip. Pump protection current monitoring relay
