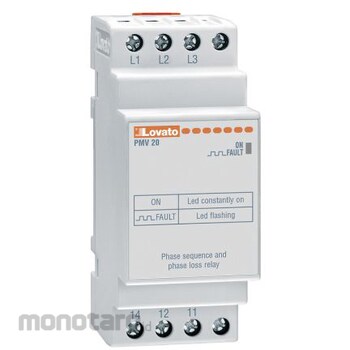

Lovato Monitoring relay Lovato SPDT 100 → 240V ac 64.9mm

Specification
Monitoring application: Voltage * Power supply voltage: 100 -> 240 V ac * Contact configuration: SPDT * Voltage sensitivity: Self-output type * Electrical phase: 3 * Voltage detection range: 400 V ac max * Delay time: 60 ms * Width: 64.9 mm EAC, US and Canada UL compliant as auxiliary device (cULus file E93601) Compliant standard: IES / EN60255-5 IEC / EN61000-6-2 IEC / EN61000-6-3 UL508 CSA C22.2 n ° 14. Built-in Lovato power supply Voltage Monitoring Relay. This Lovato voltage monitoring relay has a built-in power supply to handle minimum / maximum voltage, open phase, neutral loss (such as improper phase sequence). You can choose from single-phase or three-phase voltage monitoring relays and maximum / minimum AC voltage. The rated voltage of the relay can be set. Excellent trip accuracy. Modular DIN 43880 housing with integrated power supply Excellent trip accuracy IEC protection: IP40 (front) IP40 (terminal) only when placed in an IP40 enclosure or control board IP20 (terminal) Configurable rated voltage Single-phase or three-phase minimum / maximum AC voltage trip accuracy
